1. What are We Talking About Here?

Ever wondered how electricity actually gets from the wall socket to your phone charger? It's not magic, I promise! A huge part of that journey involves something called "wire terminations." In simple terms, wire terminations are the methods used to connect wires to electrical components or other wires. Think of them as the vital links in your electrical chain. Without them, your circuit is broken, and things just well, dont work.

There are many ways to make these connections, from the simple (and sometimes less reliable) wire nuts to more sophisticated methods like soldering or using specialized connectors. The right method depends on the application, the type of wire, and how robust you need the connection to be. Choosing the wrong termination can lead to loose connections, overheating, and even electrical fires — definitely something we want to avoid!

Imagine trying to build a Lego masterpiece without those little connecting bricks. Sure, you could just stack the pieces haphazardly, but it would be fragile and prone to collapse. Wire terminations are like those crucial Lego bricks for electrical circuits, providing a secure and reliable pathway for electricity to flow. They ensure everything stays powered and functional.

So, whether you're a seasoned electrician or a curious homeowner, understanding the basics of wire terminations is a pretty valuable skill. It can empower you to troubleshoot electrical issues, make safe repairs, and even tackle small electrical projects with confidence. Lets dive deeper into the fascinating world of connecting wires, shall we?

Medium Voltage Cable / 15kV Terminations Electrical Test Tech

Common Types of Wire Terminations

2. Exploring the Options

Alright, let's get down to brass tacks and explore some of the most common types of wire terminations you're likely to encounter. Each type has its own strengths and weaknesses, making it suitable for specific applications. Knowing the differences will help you choose the right one for the job.

First up, we have wire nuts. These are those little plastic caps you twist onto the ends of joined wires. Theyre cheap, easy to use, and great for joining solid wires in a pinch. However, they aren't always the most reliable, especially with stranded wire, and can loosen over time if not properly installed. Always make sure the wires are twisted together tightly before applying the wire nut, and give it a good tug to ensure it's secure.

Next, there are terminal blocks. These are essentially rows of screw-down terminals that allow you to connect multiple wires in an organized manner. They're fantastic for control panels, appliances, and other applications where you need a neat and secure connection point. Terminal blocks come in various sizes and configurations, so you can find one that fits your specific needs.

Then we have crimp connectors. These use a special tool to squeeze a metal connector onto the end of a wire, creating a strong and reliable bond. Crimp connectors are widely used in automotive wiring, electronics, and other applications where vibration and movement are a concern. Just make sure you use the correct crimping tool for the specific connector type to ensure a proper connection. And don't cheap out on the tool, or you'll regret it!

Finally, let's not forget about soldering. This involves melting solder onto the wires to create a permanent connection. Soldering provides a very strong and conductive bond, but it requires some skill and specialized equipment (a soldering iron, solder, and some patience). Soldered connections are often used in electronics and other applications where reliability is paramount. Just remember to insulate the connection afterward with heat-shrink tubing or electrical tape.

Wire Terminations Engineering Radio

Choosing the Right Termination

3. Making the Smart Choice

So, with all these different types of wire terminations available, how do you choose the right one for your specific project? It's not always a straightforward decision, but considering a few key factors can help you narrow down your options. Think of it like picking the right tool for a specific job a screwdriver won't work for hammering nails, and vice versa.

One of the most important factors is the type of wire you're working with. Solid wire is generally easier to work with wire nuts and terminal blocks, while stranded wire often requires crimp connectors or soldering for a reliable connection. Also, consider the wire gauge (thickness). Thicker wires may require larger connectors or more robust termination methods.

Another critical consideration is the environment where the connection will be located. If it's in a damp or corrosive environment, you'll need to choose a termination method that is resistant to corrosion and moisture. Waterproof connectors, sealed terminal blocks, and soldering with corrosion-resistant solder are all good options in such cases.

The vibration is also essential. Connections in areas subject to frequent vibration should use termination methods designed to withstand movement without loosening. Crimp connectors and soldered connections are particularly good choices in these situations, as they provide a more secure and permanent bond.

Finally, consider your own skill level and the tools you have available. Soldering, for example, requires some practice and specialized equipment, while wire nuts are relatively easy to use even for beginners. Don't be afraid to start with simpler methods and work your way up as you gain more experience. Safety first, always!

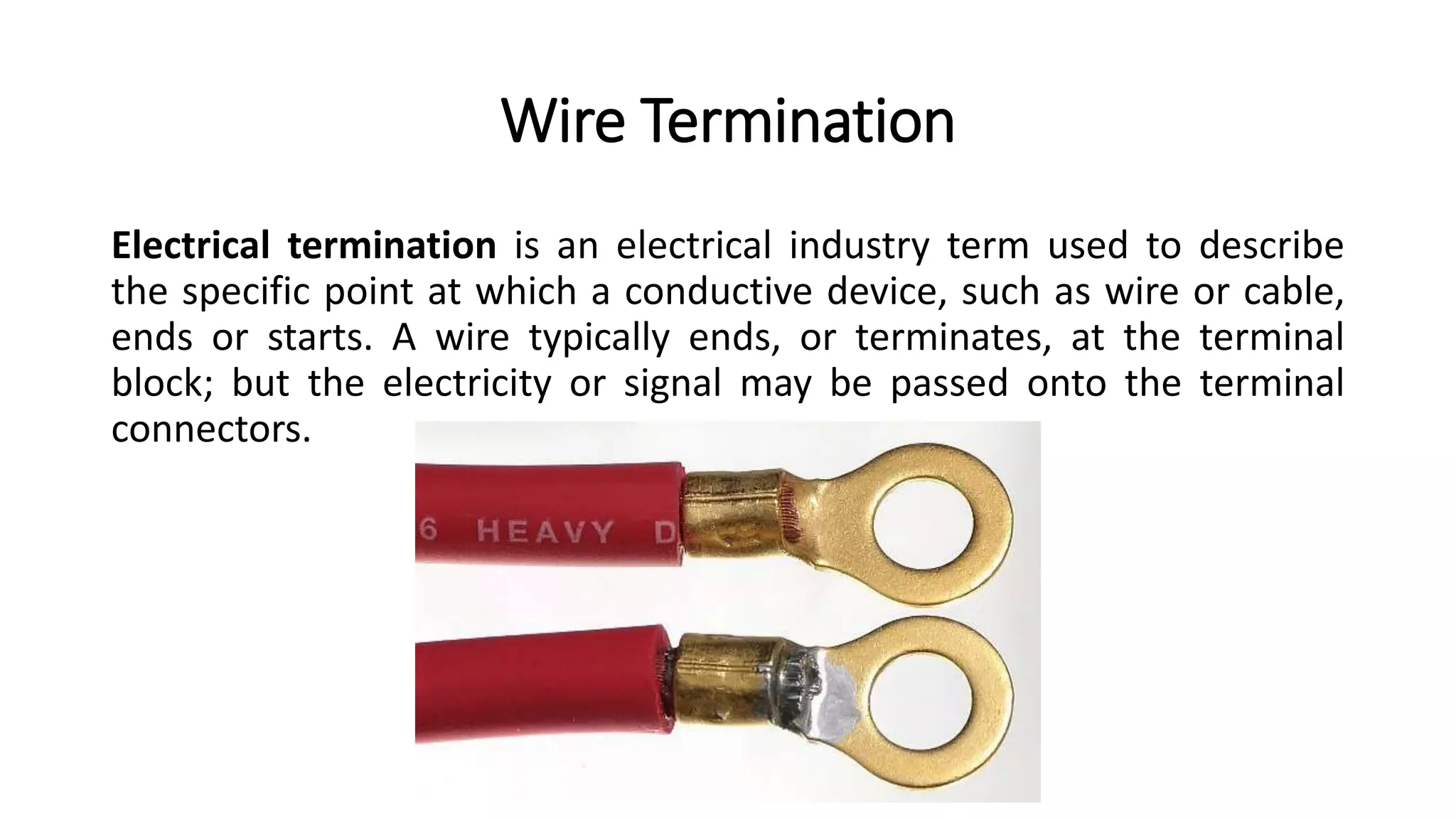

Lesson 6 TERMINATING AND CONNECTING ELECTRICAL WIRING ELECTRONICS

Avoiding Common Mistakes

4. Don't Be "That Guy"

Even with the right tools and knowledge, it's still possible to make mistakes when working with wire terminations. But fear not! By being aware of these common pitfalls and taking a few simple precautions, you can ensure your connections are safe, reliable, and up to code.

One of the biggest mistakes is over-tightening screws on terminal blocks or connectors. While it's important to make sure the connection is secure, over-tightening can damage the wires or the connector itself, leading to a weakened connection. Just tighten the screw until it's snug, and then give it a slight additional turn. You'll feel it when it's tight enough.

Another common mistake is using the wrong size wire nut for the number and gauge of wires being joined. Wire nuts are designed for specific wire combinations, and using the wrong size can result in a loose or insecure connection. Always check the manufacturer's instructions to ensure you're using the correct wire nut for your application.

Neglecting proper wire stripping can also cause problems. Stripping too much insulation can expose too much bare wire, increasing the risk of short circuits. Stripping too little insulation can prevent the wire from making proper contact with the connector. Use a wire stripper to remove just the right amount of insulation, and make sure the exposed wire is clean and free of nicks or scratches.

Last but not least, skipping insulation is a no-no. Always insulate your wire terminations with electrical tape, heat-shrink tubing, or other insulating materials. This will prevent short circuits, protect the connection from moisture and corrosion, and reduce the risk of electrical shock. Better safe than sorry, right?

Useful Cheat Sheets For Network Engineers Serviceteam IT

FAQ

5. Your Burning Questions Answered

Okay, let's tackle some frequently asked questions about wire terminations. Hopefully, these answers will clear up any remaining confusion and give you the confidence to tackle your next electrical project.

Q: Can I use wire nuts on stranded wire?
A: While you can technically use wire nuts on stranded wire, it's generally not recommended. Stranded wire tends to spread out under pressure, which can lead to a loose connection over time. Crimp connectors or soldering are better options for stranded wire.

Q: What's the best way to insulate a soldered wire termination?
A: Heat-shrink tubing is an excellent choice for insulating soldered connections. Simply slide the tubing over the wire before soldering, and then shrink it down with a heat gun or hairdryer after the connection is made. Electrical tape can also be used, but it's not as durable or moisture-resistant as heat-shrink tubing.

Q: How often should I check my wire terminations?
A: It's a good idea to periodically check your wire terminations, especially in areas that are subject to vibration or moisture. Look for signs of corrosion, loose connections, or damaged insulation. If you find any problems, address them immediately to prevent further issues. Once a year is a reasonable interval, but more often if you suspect a problem.

Q: Is it safe to DIY electrical work?
A: While some small electrical projects are within the capabilities of a handy homeowner, it's important to know your limits. If you're not comfortable working with electricity, or if the project involves complex wiring or working with high voltage, it's best to call a qualified electrician. Your safety is paramount!
