Understanding Electrical Wiring

1. Decoding the Basics

Okay, so you're staring at two spools of electrical wire, one labeled NMB and the other UFB. They both look kinda similar, right? Copper strands, some insulation... But don't be fooled! These wires have different personalities and are suited for different tasks around your home or project. Think of them like siblings — related, but definitely not interchangeable when it comes to responsibility.

Essentially, NMB (Non-Metallic Building Wire) is your indoor wire — the one that's happy inside your walls, protected from the elements. UFB (Underground Feeder Cable), on the other hand, is the tough guy. Its designed to be buried directly in the ground, laughing in the face of moisture, critters, and general underground unpleasantness.

Knowing the difference is crucial. Using the wrong wire can lead to electrical hazards, code violations (which means unhappy inspectors!), and just plain old wasted effort. Nobody wants to dig up a trench and replace a wire because they chose poorly, right? So, let's dive deeper and unravel the mysteries of NMB and UFB.

Consider this scenario: You're planning to run power to a shed in your backyard. Using NMB would be a HUGE mistake. Rain, soil acidity, and the general dampness of being underground would quickly corrode the wire, leading to shorts, fires, and a very sad shed. UFB, however, would be perfect for this job. It's built to withstand the harsh conditions.

6/3 UFB WG Underground Wire Best Deals

Breaking Down NMB

2. Where NMB Shines

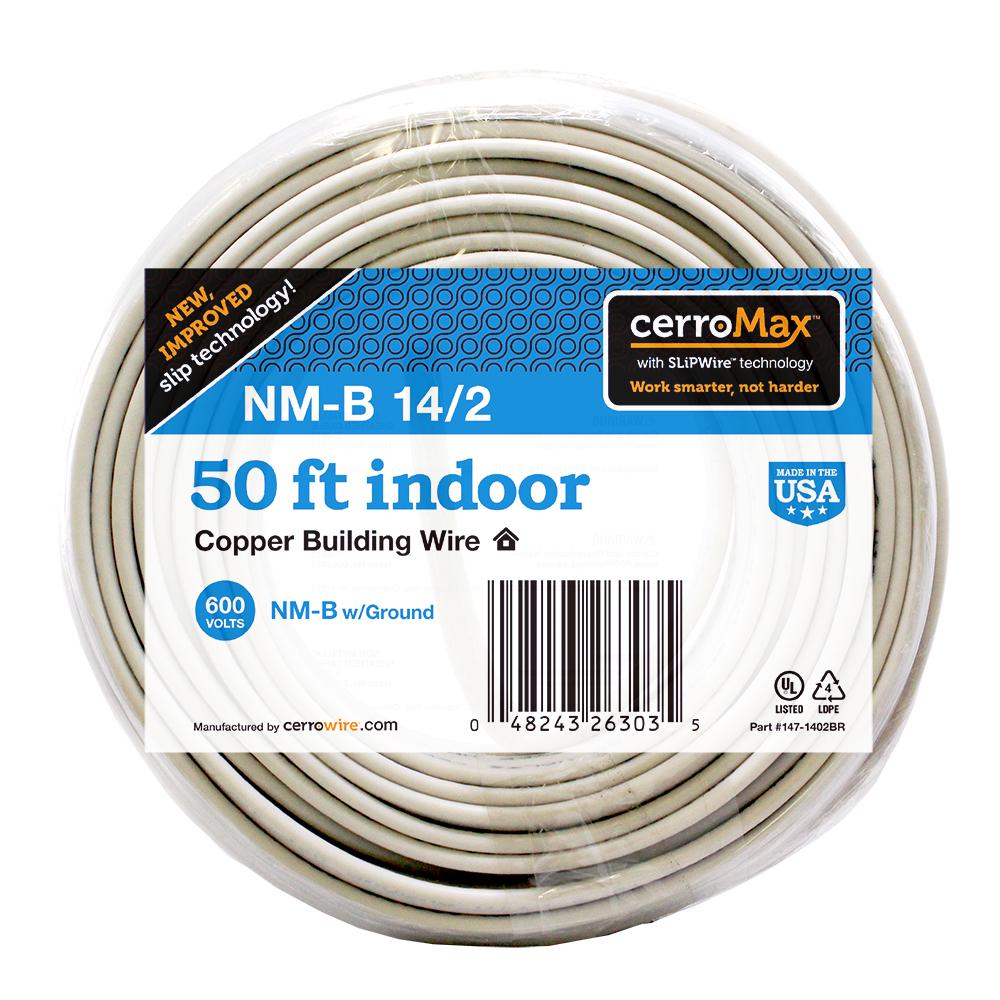

NMB, often called Romex (a popular brand name), is your go-to wire for most indoor wiring projects. Think of your outlets, switches, and lighting circuits. It's relatively inexpensive, easy to work with, and readily available at any hardware store. Its like the dependable sedan of the wiring world — gets the job done reliably.

The NM part stands for Non-Metallic, meaning it's encased in a plastic sheath. This sheath protects the wires inside from physical damage but offers limited protection against moisture. That's why it's strictly an indoor wire. Imagine taking your phone out in the rain without a case — not a good idea! Similarly, exposing NMB to moisture is asking for trouble.

NMB typically comes in various gauges (thicknesses) to handle different amounts of current. 14-gauge is common for lighting circuits, while 12-gauge is often used for outlets. Larger appliances like refrigerators and stoves require even thicker wires (10-gauge or larger) to handle their higher power demands. Always consult with an electrician or refer to your local electrical codes to ensure you're using the correct wire gauge for your specific application. Safety first, always!

Think of NMB as being best suited for dry locations. It needs to be protected inside walls, ceilings, or other enclosed spaces. Running it exposed along a basement wall, for example, is a no-no (unless it's protected by conduit). Proper stapling and securing of NMB are also important to prevent damage and ensure a neat and professional installation. Sloppy wiring is not only unsightly but can also be a safety hazard.

Electrical Wiring Types, Sizes And Installation Family Handyman

Unveiling UFB

3. Built for the Deep

Now, let's talk about UFB. This wire is the rugged off-roader of the electrical world. It's specifically designed for direct burial applications, meaning it can be buried directly in the ground without needing to be run through conduit (although conduit can provide additional protection in rocky or harsh soil conditions). It's built to withstand moisture, corrosion, and the general abuse that comes with being buried alive.

The key difference between UFB and NMB lies in its construction. UFB has a solid thermoplastic insulation that's much thicker and more durable than the insulation on NMB. This insulation is resistant to water, chemicals, and abrasion. It also has a more robust outer jacket that provides additional protection against physical damage and UV rays (if any part of the wire is exposed to sunlight before burial).

UFB is typically used for running power to detached garages, sheds, outdoor lighting, well pumps, and other outdoor electrical equipment. It's also suitable for wet locations, such as underground sprinkler systems. However, it's generally more expensive than NMB, so you wouldn't typically use it for indoor wiring unless specifically required by local codes or for a particularly damp location.

When burying UFB, it's important to follow local electrical codes regarding burial depth. Typically, it needs to be buried at least 18 inches deep to protect it from damage from shovels, lawnmowers, and other underground hazards. It's also a good idea to mark the location of the buried cable with warning tape to prevent accidental digging in the future. Remember, a little extra effort during installation can save you a lot of headaches (and potential electrocution!) down the road.

Electrical Wire Size Charts Chart Reference Quick

Installation Considerations

4. Doing It Right (and Safely!)

No matter which type of wire you're using, proper installation is paramount. First and foremost, always turn off the power at the breaker before working on any electrical wiring. This seems obvious, but it's surprising how many people skip this crucial step. Electricity doesn't care if you're "just" touching a wire — it can still give you a nasty (or even fatal) shock.

When working with NMB, be careful not to damage the outer sheath. Nicks and cuts can expose the wires inside and create a potential hazard. Use appropriate cable strippers to remove the outer sheath and insulation from the wires without damaging the copper conductors. Secure the wire properly with staples or cable ties, making sure not to over-tighten them, which can also damage the insulation.

When burying UFB, make sure the trench is free of sharp rocks and debris that could damage the cable. Backfill the trench with soil that's free of large stones. Consider using a layer of sand around the cable for extra protection. As mentioned earlier, marking the location of the buried cable with warning tape is a wise precaution.

Always follow local electrical codes and regulations when installing any type of electrical wiring. If you're not comfortable working with electricity, it's always best to hire a qualified electrician. Electricity is not something to be taken lightly, and a mistake can have serious consequences. Don't be afraid to ask for help! It's better to be safe than sorry.

Nmb Wire Meaning

Troubleshooting

5. Preventing Problems Before They Start

Even with proper installation, electrical wiring can sometimes experience problems. One common issue is loose connections. Over time, the screws on outlets, switches, and junction boxes can loosen, leading to poor connections and potential overheating. Regularly check these connections and tighten them as needed.

Another common problem is damaged insulation. This can be caused by physical damage, exposure to moisture, or age. Damaged insulation can lead to shorts, ground faults, and fires. If you notice any signs of damaged insulation, replace the affected wiring immediately.

Overloading circuits is another frequent culprit. Each circuit in your home is designed to handle a specific amount of current. If you plug too many appliances into a single circuit, it can overload, causing the breaker to trip. If you frequently experience tripped breakers, it's a sign that you need to redistribute your appliances or add more circuits.

Finally, proper grounding is essential for electrical safety. Grounding provides a path for fault current to flow back to the source, tripping the breaker and preventing electrical shock. Make sure all of your electrical outlets and appliances are properly grounded. If you're unsure about grounding, consult with an electrician.

Homeowner Electrical Cable Basics The Family Handyman

FAQ

6. Because We Know You're Wondering...

Q: Can I use UFB wire inside my house?

A: While technically you can, it's generally overkill and more expensive than NMB. Plus, it might be a pain to work with because it's stiffer. Stick with NMB for indoor applications unless your local code specifically requires UFB for a particular situation, like a super damp basement.

Q: What happens if I accidentally use NMB wire underground?

A: Bad things, my friend. Really bad. The NMB wire will quickly corrode, leading to shorts, power outages, and a potential fire hazard. You'll have to dig it all up and replace it with UFB. Save yourself the trouble and use the right wire from the start!

Q: How do I know what gauge of wire to use?

A: The correct wire gauge depends on the amperage of the circuit and the distance the wire needs to run. Consult your local electrical codes or talk to an electrician to determine the appropriate gauge for your specific application. Using the wrong gauge can be dangerous!

Q: Can I splice NMB and UFB wires together?

A: Yes, but it needs to be done correctly, inside a properly rated junction box. The splice should be protected from the elements, especially if the UFB wire is underground. Using waterproof connectors is also a good idea.
