Unlocking Thevenin's Theorem

1. Why Bother with Thevenin's Theorem, Anyway?

Ever stared at a complicated circuit diagram that looked like spaghetti exploded on paper? Yeah, me too. That's where Thevenin's Theorem swoops in to save the day. Instead of wrestling with a zillion components, it lets you simplify a complex circuit into a single voltage source (VTH) and a single series resistance (RTH). Think of it as turning a monster into a manageable pet hamster. Much easier to handle, right?

Thevenin's Theorem is super handy when you want to analyze the effect of changing a load resistor connected to a complex network. Imagine you're designing an audio amplifier and need to see how different speakers will affect the output. Instead of re-analyzing the entire amplifier circuit every time, you can Thevenize it once and quickly determine the behavior for various speaker impedances. Efficiency at its finest!

Another great application is in circuit design. You might have a complicated power supply circuit, but you only care about its output characteristics. By finding the Thevenin equivalent, you can treat the entire power supply as a simple voltage source and resistance when designing the rest of your system. This makes calculations much easier and reduces the chance of errors. Its like getting a cheat code for circuit analysis!

Basically, mastering Thevenin's Theorem means you can cut through the clutter and focus on what's truly important in a circuit. It's a powerful tool for simplification, analysis, and design. So, lets dive in and figure out how to find VTH and RTH, shall we? No more spaghetti diagrams, just clear, concise solutions!

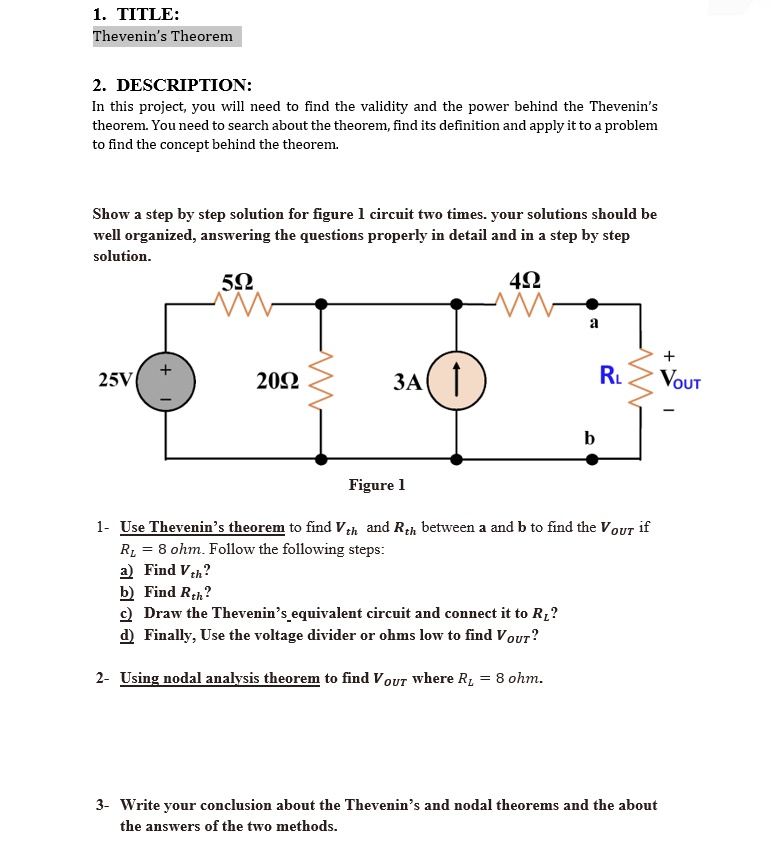

SOLVED 3 Questions Use Thevenin's Theorem To Find Vth And Rth,

Finding VTH

2. Method 1

VTH, or the Thevenin voltage, is the open-circuit voltage across the terminals of interest. Picture this: you snip the connection to your load resistor (or whatever you're analyzing) and measure the voltage difference. That's VTH! But what if you can't physically measure it, or it's a simulated circuit? That's where the fun begins with calculation.

First, you need to remove the load resistor (RL) from the circuit, creating an open circuit. Then, using circuit analysis techniques like nodal analysis, mesh analysis, or even simple voltage division (depending on the complexity), you determine the voltage across those open terminals. The key here is to be meticulous. Double-check your work, because a small error early on will propagate through the entire calculation. It's like building a house; a shaky foundation will cause problems later.

Sometimes, dependent sources can throw a wrench in the works. If you have dependent sources (voltage or current sources whose value depends on another voltage or current in the circuit), you'll need to account for their influence. This might require setting up a system of equations and solving for the relevant voltage. Don't be intimidated! Just treat them as variables in your equations and solve accordingly. Think of them as quirky characters in your circuit adventure.

A practical tip: If you're doing this by hand, draw a clear and well-labeled diagram. This will help you keep track of all the voltages and currents, and it will make it easier to spot any mistakes. If you're using a circuit simulator, take advantage of its features to display voltages and currents directly on the schematic. This can save you a lot of time and effort. Also, make sure you understand how to setup the simulation correctly to emulate the open circuit condition where no current flows from the node you are trying to measure VTH from.

3. Method 2

What if your circuit has multiple independent sources? No sweat! Superposition comes to the rescue. This method involves finding the voltage contribution from each source independently and then adding them together. It's like having multiple singers in a choir, each contributing their voice to the overall harmony.

The first step is to consider each source individually while turning off all the other independent sources. When turning off a voltage source, you replace it with a short circuit. When turning off a current source, you replace it with an open circuit. For each source, calculate the voltage across the terminals of interest (with the load resistor removed, of course). You'll have a set of voltages, one for each independent source in your circuit. It's like isolating each singer's performance before blending them together.

Next, you simply add up all the individual voltage contributions you calculated in the previous step. The sum is your VTH! Be careful with the signs; make sure you're adding them correctly. If you get a negative voltage, it simply means the polarity is opposite to what you initially assumed. Don't panic, just adjust your understanding. You can also find the polarity by looking at the direction of current when source is being analyzed.

Superposition can be a bit more time-consuming than direct calculation, especially for circuits with many sources. However, it's a reliable method that can be applied to a wide range of circuits. It can be very handy when you have multiple independent voltage or current sources. If one of the source is causing issue, then we can identify the source by process of elimination by enabling only one source at a time. Think of it as isolating each instrument in an orchestra to identify a sour note.

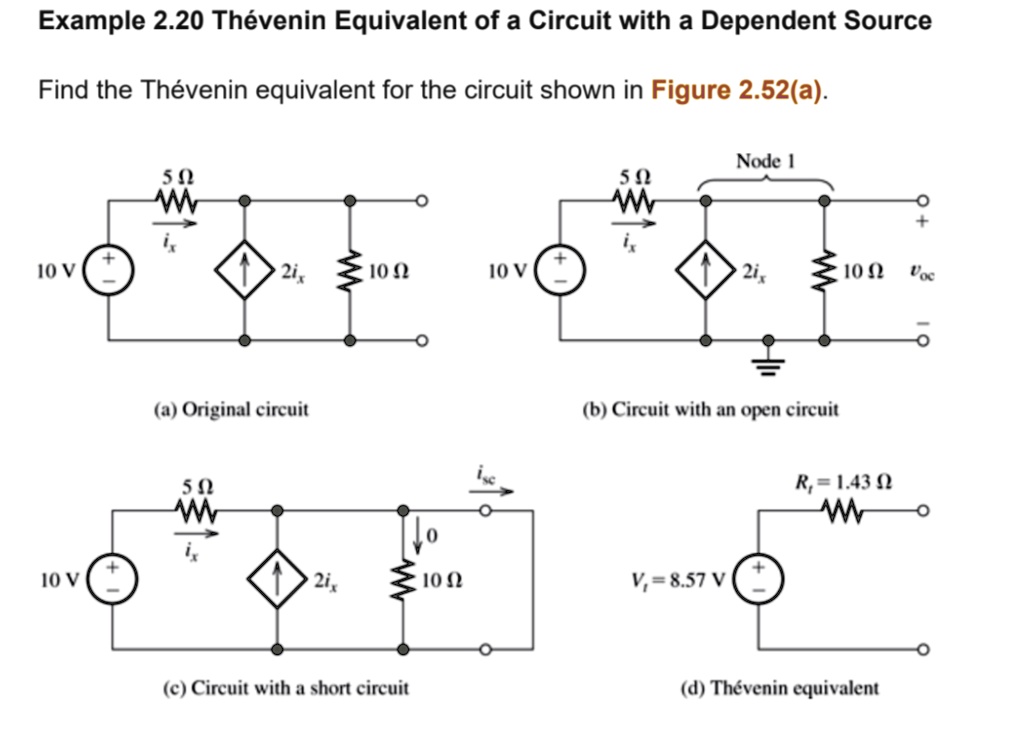

SOLVED Hi! Can You Show All The Work For This Dependent Source

Finding RTH

4. Short-Circuiting and Source Deactivation - RTH by Calculation

RTH, the Thevenin resistance, is the resistance you'd see looking back into the circuit from the terminals of interest, with all independent sources turned off. This means voltage sources are replaced by short circuits, and current sources are replaced by open circuits. It's like peering into a darkened room, trying to gauge its size and shape.

After deactivating all the independent sources, simplify the circuit as much as possible. Combine series resistors, parallel resistors, and any other simplifications you can find. The remaining resistance is your RTH. This step often involves some clever circuit manipulation and applying your knowledge of series and parallel combinations. Remember those resistor combination formulas! It's like playing a puzzle, fitting all the pieces together to form a whole.

For circuits with dependent sources, finding RTH requires a slightly different approach. Instead of simply deactivating the sources, you apply a test voltage (Vt) or a test current (It) across the terminals of interest and then calculate the resulting current (It) or voltage (Vt). RTH is then given by Vt/It. This is because dependent sources are tied to values inside the circuit. Applying a test voltage or current perturbs the existing equilibrium, allowing to determine the Thevenin resistance. Think of it as poking the circuit with a stick to see how it reacts.

The key to success here is careful circuit simplification and a solid understanding of series and parallel resistance combinations. Take your time, draw clear diagrams, and don't be afraid to break down the problem into smaller steps. Just as with finding VTH, a small error early on can lead to a completely wrong answer. So, double-check your work and be patient. Its a bit like untangling a knot slow and steady wins the race.

5. Using a Test Source - The "Poking" Method for Complex Networks

When a circuit contains dependent sources (those pesky things that change based on something else in the circuit), things get a little trickier. We can't just deactivate the sources and find the equivalent resistance. Instead, we use a test source method. This involves "poking" the circuit with either a voltage source or a current source and measuring the resulting current or voltage, respectively. Essentially, we're measuring how the circuit responds to our poking.

First, deactivate all the independent sources (shorting voltage sources and opening current sources), but leave the dependent sources untouched. Then, connect either a voltage source (Vt) or a current source (It) to the terminals where you want to find RTH. Let's say you chose a voltage source Vt. You then need to calculate the current (It) that flows from this voltage source into the circuit. The Thevenin resistance (RTH) is then calculated as Vt / It. Similarly, if you chose a current source It, you would calculate the voltage (Vt) across the terminals and find RTH as Vt / It.

The calculation of It (if you applied Vt) or Vt (if you applied It) usually involves standard circuit analysis techniques like nodal analysis or mesh analysis. Just remember to include the dependent sources in your equations. The key here is to keep track of all the variables and make sure you're solving the equations correctly. Sometimes, you can even choose a convenient value for the test source (like 1V or 1A) to simplify the calculations.

This test source method might seem a little abstract, but it's a powerful way to find RTH in circuits with dependent sources. It essentially measures how the circuit resists the flow of current injected by the test source. Just be careful with your calculations and remember that RTH is always positive. If you end up with a negative value, something went wrong! So, double-check your work and try again.

Putting It All Together

6. Drawing Your Simplified Masterpiece

Alright, you've calculated VTH and RTH. Now what? You draw the Thevenin equivalent circuit, of course! This is the grand finale, the culmination of all your hard work. It's a simple circuit consisting of a voltage source (VTH) in series with a resistor (RTH). This simple equivalent circuit represents the behavior of the entire original circuit as seen from the terminals where you removed the load. It's like replacing a complex painting with a simple sketch that captures its essence.

Connect your load resistor (RL) back to the terminals of the Thevenin equivalent circuit. Now you can easily analyze the voltage and current in the load resistor using simple Ohm's Law and voltage division. This is where the real power of Thevenin's Theorem shines. Instead of dealing with a complicated network, you're working with a simple series circuit. You can easily calculate the current through RL as I = VTH / (RTH + RL), and the voltage across RL as V = I * RL.

This Thevenin equivalent circuit is only valid for analyzing the circuit from the perspective of the load resistor. If you change the load resistor, you don't need to re-analyze the original circuit. You can simply use the same Thevenin equivalent circuit. If you start connecting other components besides the load to different point within the circuit, the model may not be accurate anymore. This is because the Thevenin theorem is only equivalent with the output terminals and external load. This is also important to remember when calculating efficiency as additional components will impact the efficiency of the system.

With your Thevenin equivalent circuit in hand, you can easily determine the impact of different load resistors on the circuit's performance. This is invaluable for design and analysis. Imagine you're designing an amplifier and want to see how different speakers will affect the output. You can easily plug in different values for RL and see the results. Its like having a crystal ball that lets you predict the future behavior of your circuit!

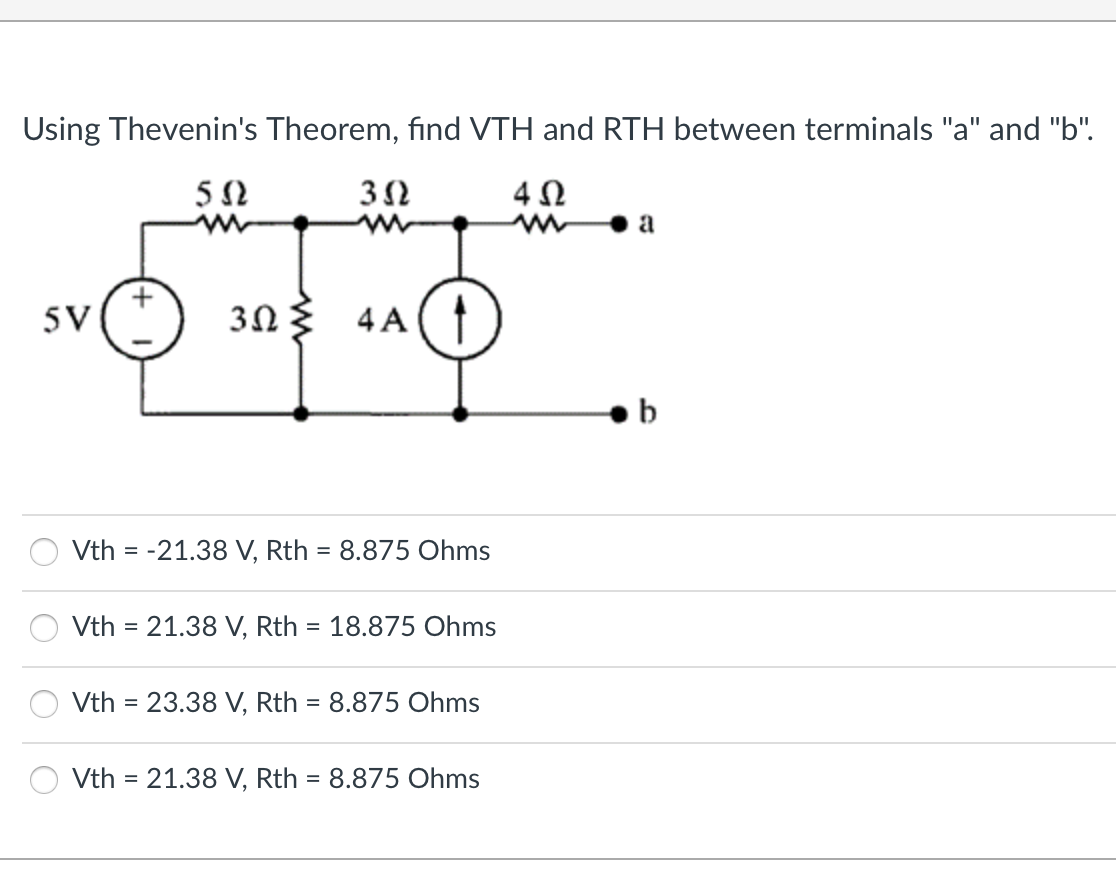

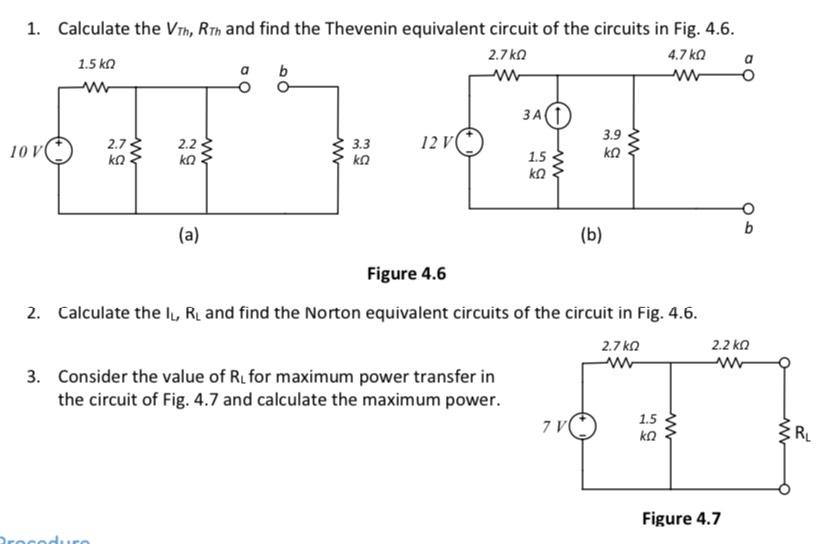

Solved Using Thevenin's Theorem, Find VTH And RTH Between

Thevenin's Theorem

7. Limitations and When to Choose Norton

Thevenin's Theorem is incredibly powerful, but it does have limitations. It primarily applies to linear circuits, meaning circuits with components whose voltage-current relationship is linear (like resistors, capacitors, and inductors). It doesn't work directly for non-linear components like diodes and transistors unless you linearize them around an operating point. These components, if not linearized, can have relationship that are not linear which mean that the resistance may not be constant.

It's also important to remember that the Thevenin equivalent circuit is only valid for analyzing the circuit from the perspective of the load resistor. If you want to analyze the circuit from a different point, you'll need to find a new Thevenin equivalent. Furthermore, Thevenins theorem does not apply to circuits with mutually coupled inductors or transformers. The equivalent source must be independent of the load circuit. Applying superposition is also necessary for the circuit. Dependent sources can be present, but cannot be independent of other sources.

Sometimes, Norton's Theorem is a better choice. Norton's Theorem provides an equivalent circuit consisting of a current source in parallel with a resistance. It's particularly useful when the load is connected in parallel with the original circuit. The Norton equivalent circuit consists of a current source (IN) in parallel with a resistor (RN). IN is the short-circuit current through the terminals, and RN is the same as the Thevenin resistance (RTH). So in those cases, you could just calculate using Thevenin and convert to Norton.

The choice between Thevenin and Norton often depends on the specific application and the type of circuit you're dealing with. Both theorems provide powerful tools for simplifying circuit analysis and understanding circuit behavior. So, master both and add them to your toolkit! You will find one to be more suitable depending on the circuit topologies you are working with. It is a great way to check your work too, because if you find Thevenin's, converting it to Norton is pretty trivial.
